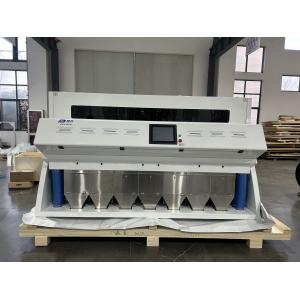

Desiccated Coconut Color Sorter,Intelligent Sorting,With Photo Capturing Function
Product Description
Advanced Technology 99.99% Sorting Accuracy Coconut Color Sort Machine For Sorting Coconut Color Sorter
Working Principle of color sorter:
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
Technical Parameter
| Model | 6SXM-44JM7 |
| Output(T/h) | 3~5 |
| Carryover Rate(Bad:Good) | >12.5:1 |
| Sorting Accuracy(%) | ≥99.99 |
| Voltage (V/Hz) | 220V 50HZ |
| Power Supply(Kw) | ≤4.0 |
| Pressure(Mpa) | 0.5-0.8 |
| Weight(Kg) | 1750(±5%) |
| Diamension(mm) | 2675*1620*2040 |
Technical Features
High-speed, high-resolution CCD camera
Imported high-definition Toshiba lens
International famous brand touch screen - Freescale
High brightness LED light source
High frequency solenoid valve - Block ejector Or SMC ejector for selection
Easy operating system
